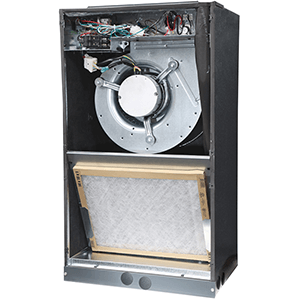

Aspen, LEM614-631

SKU
LEM614-631
Specifications
Air Handler Model LEM
Dimension 57Hx24.5Wx20.5D
Tonnage 5
Fan Motor Standard ECM
Configuration Single Piece
Phase 1-Phase
Voltage 208/230
Metering Device Non-Bleed TXV
Brand Aspen
Series Aspen
Parts Warranty 10-Year Limited Parts Warranty
Tech Guide lemtech.pdf
Upflow or horizontal right as shipped (field-convertible for downflow or horizontal left applications). Can be AHRI certified with most brands of air conditioners or heat pumps. ETL listed for use with either R22 or R410a when a proper metering device is used. Less than 2% air leakage from cabinet when tested in accordance with ASHRAE standard 193. Unit must be installed according to installation instructions. Sturdy, fully insulated galvanized steel cabinet with knockout for duct return. Constant torque ECM speeds and torques are controlled by software embedded in the motor to maintain constant torque. Motors are pre-programmed with speeds and torques at the factory for optimal performance and reliability. Direct drive blowers circulate air quietly and efficiently. Rail mounted blowers provide easy removal for service and maintenance. An electronic board controls the functioning of the system reducing moving parts. The board provides a blower time delay to maximize heat/cool extraction and offers an integrated fuse for additional protection. High efficiency rifled aluminum tubes and enhanced aluminum fins provide maximum heat transfer. All coils factory leak tested with two-stage pressure dacay and mass spectrometer process then nitrogen pressurized and factory sealed for maximum reliability.
